15m Waterproof Easy Install Disassemble Big Large Geodesic Dome Tent for Event

Dome Tent Size : 3m -50m
Frame : With hot-dip galvanized steel pipe, different sizes of dome tent pipe fittings will change.
Covering :Colorful cover ,transparent cover

15m Waterproof Easy Install Disassemble Big Large Geodesic Dome Tent for Event

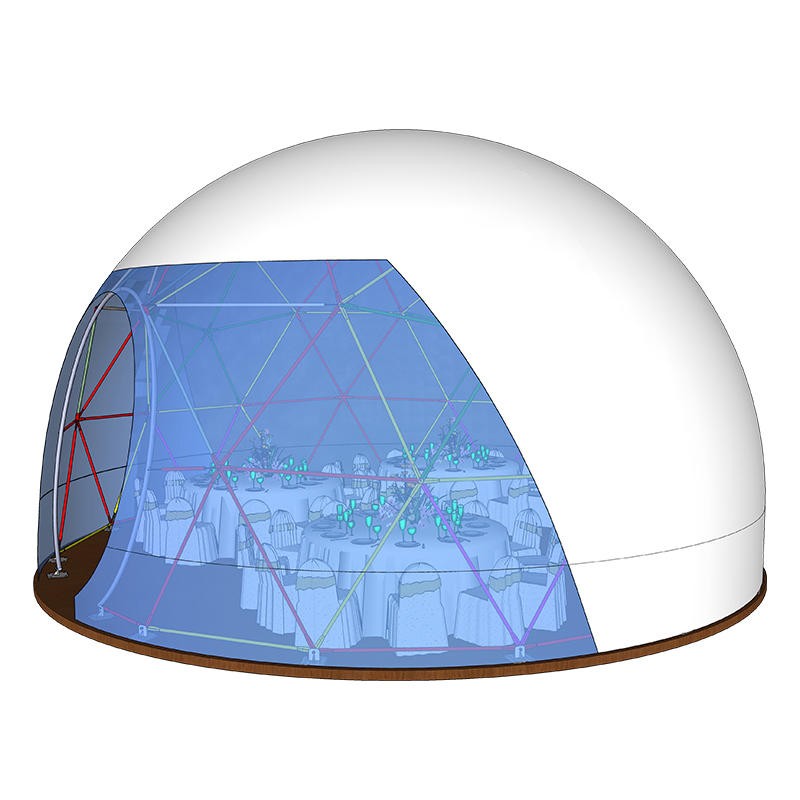

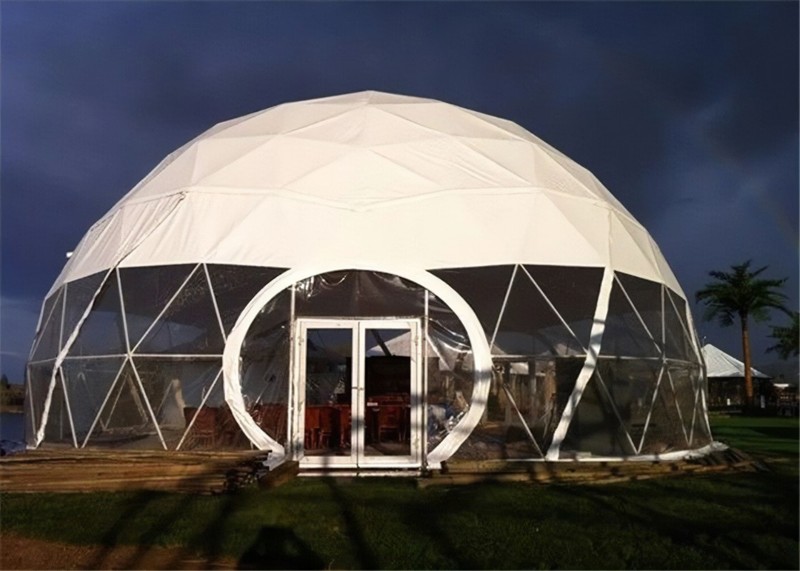

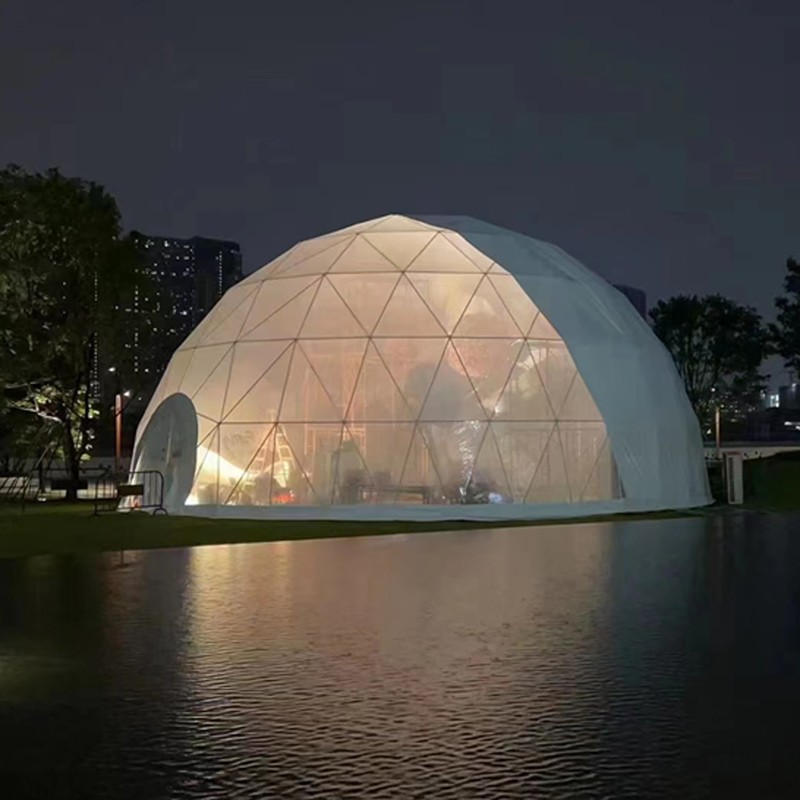

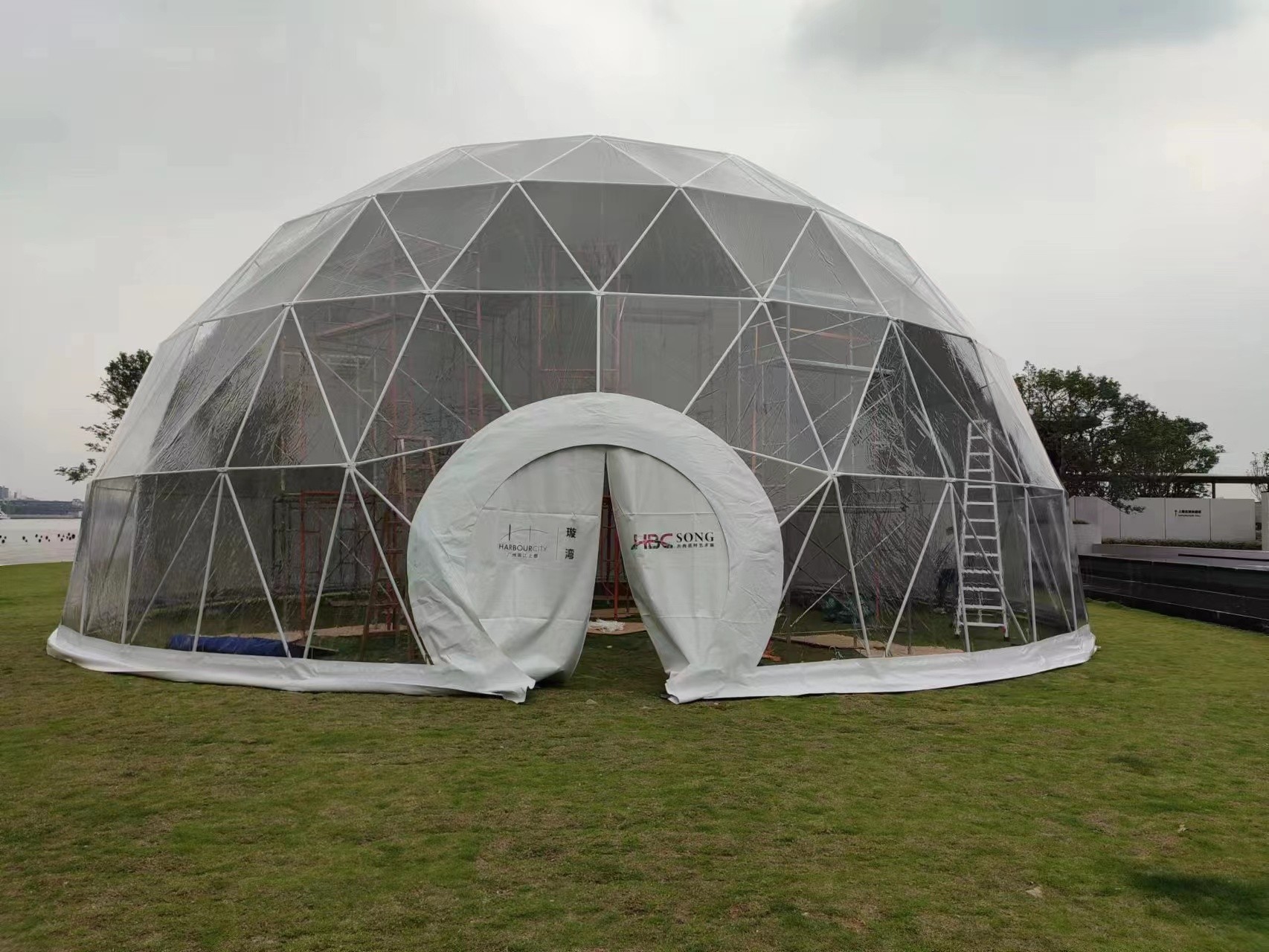

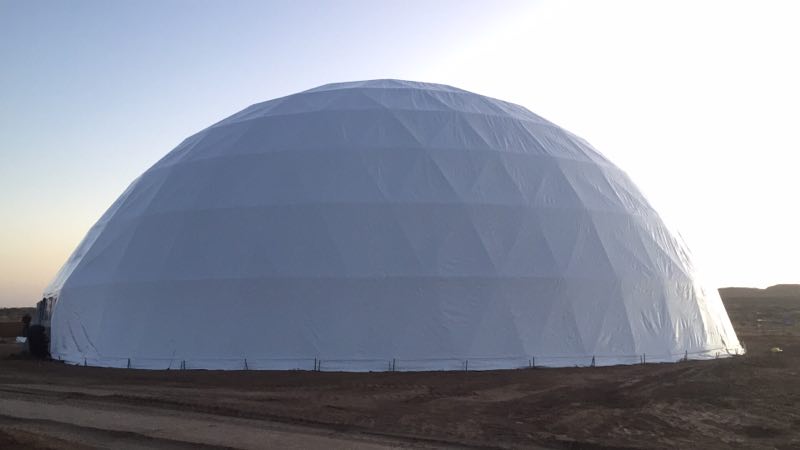

Geodesic Dome Tent also can be used with all clear roof covers,it makes the whole structure bright and transparent with sunlight.And it shines the most colorful lighting  effect to all the guests . No matter it is for large -scale events of celebrations ,exhibitions with big large capacity space,the Geodesic Dome Tent can be to meet all your requiryments.

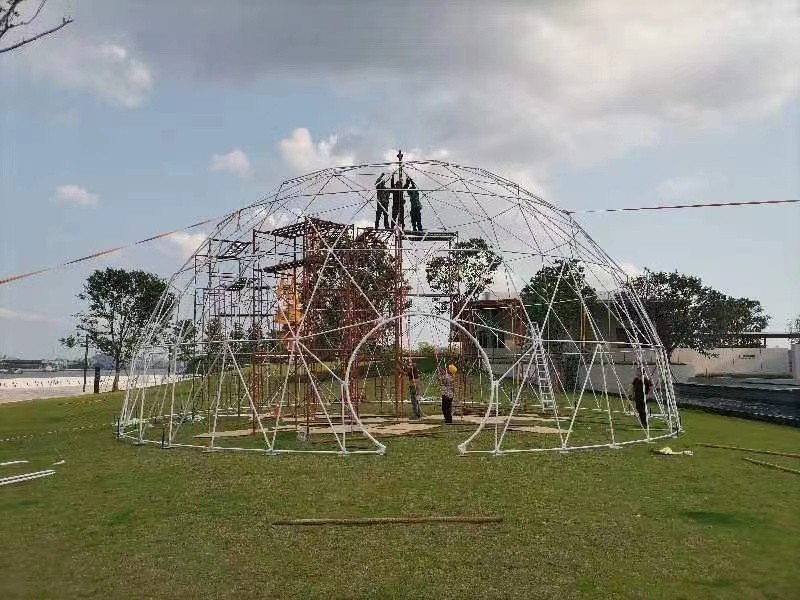

Geodesic Dome Tent adopts the modular structure,easy to set up ,and all the PVC covers can be folded.The packing is small and light weight frames after dismantled,it can effectively save the labor time and manpower costs.This is very good too for rapid installation.

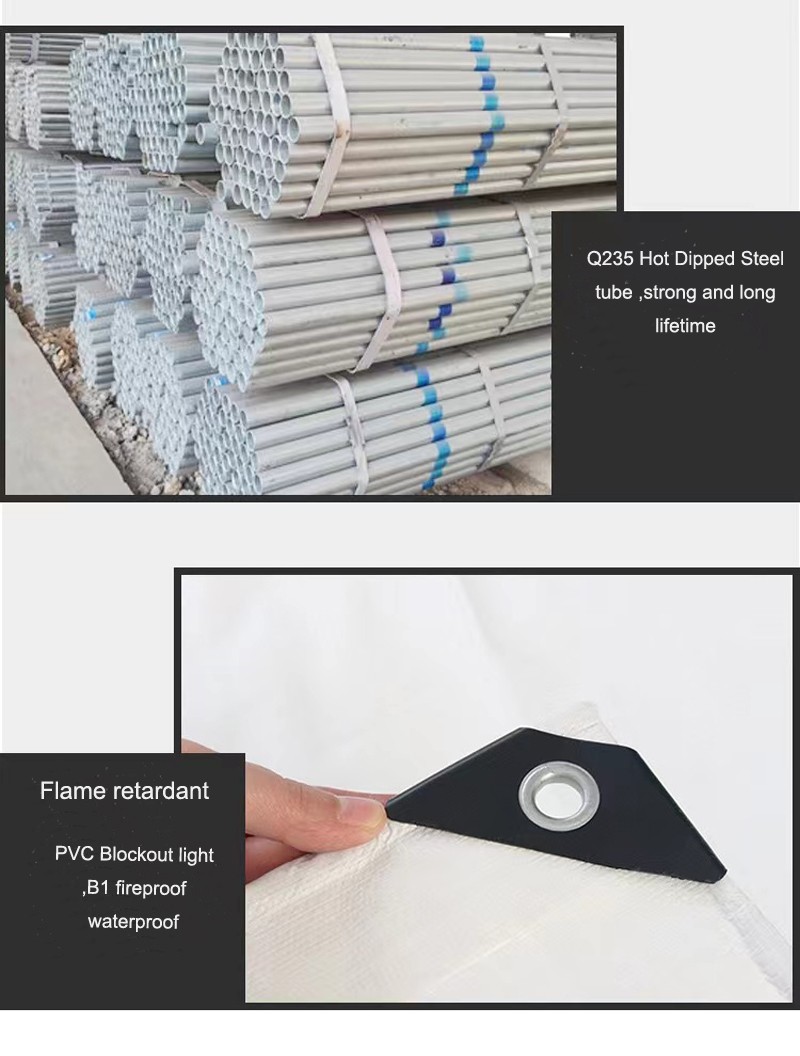

Main Frame MaterialPowder coated steel pipe Q235 φ26*1.5mm, φ26*1.8mm, φ32*2.0mm, φ42*2.0mm, φ48*2.5mm, φ60*2.5mm, φ60*3mm; Aluminum pipe is optional.
Cover Density650g/sqm, 750g/sqm, 850g/sqm PVC fabric
Steel ComponentsHot galvanized surface
FeaturesFire retardant(DIN 4102 B1/M2); Weather resistant: shock resistant.




Size(DiameterCenter HeightMax.WindloadFloor AreaStandingSeating
6m3.5m80km/h28㎡2819
10m5.86m80km/h78㎡7852
15m7.5m100km/h176㎡176117
20m10m100km/h314㎡314209
25m10m100km/h490㎡490327
30m12m100km/h700㎡700467
35m13m100km/h960㎡960640
40m14m100km/h1256㎡1256837
50m16m100km/h1962㎡19621308
