This TFS aluminum frame tent can be permanent or semi - permanent

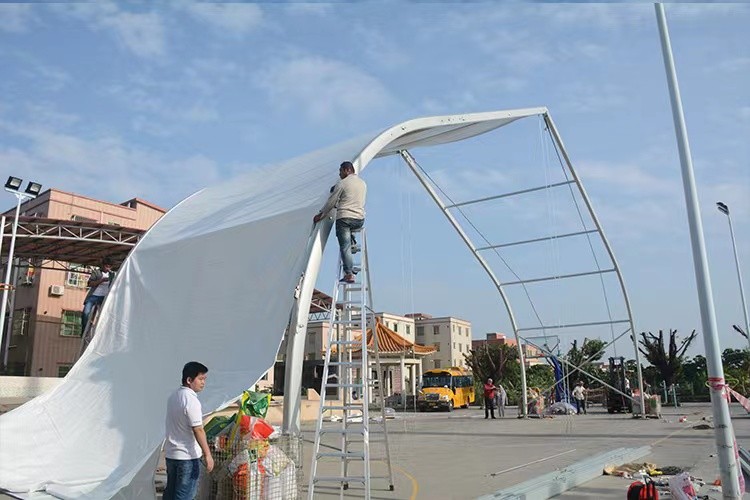

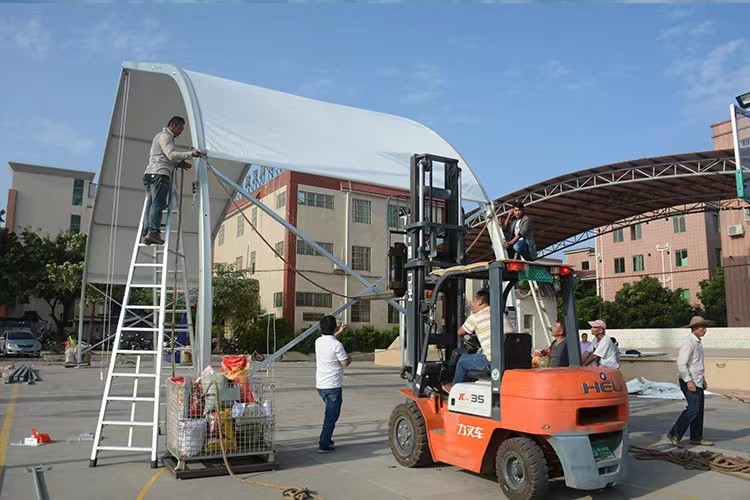

Easy to assemble and disassemble in modular design
Side wall can be PVC , ABS ,Glass and Sandwich Panel Walls
Supporting facilities with lighting ,drainage ,etc
Customization is supported

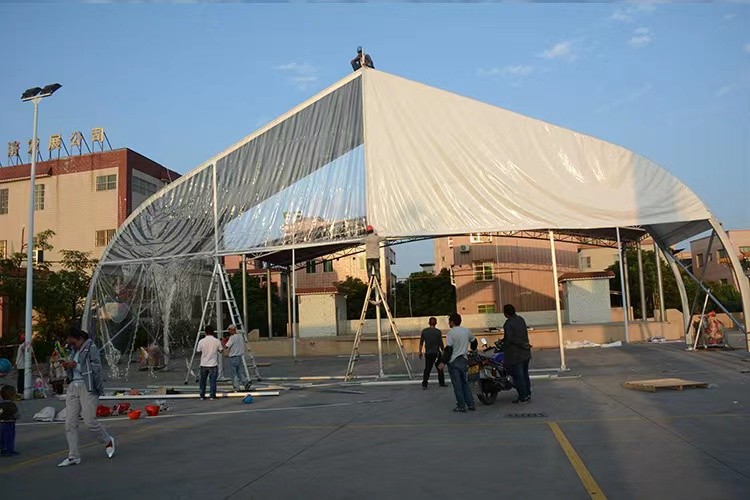

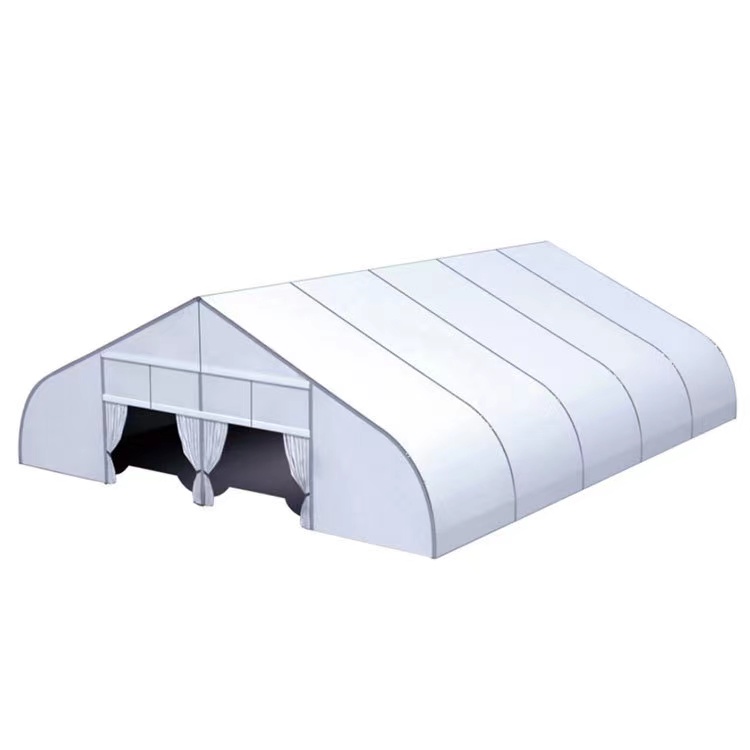

TFS Curved Structure Outdoor Sport Aluminum Event Tent 20m ,25m ,30m ,35m
Main Profiles: Hard pressed extruded aluminium 6061/T6(15HW) which can last more than 20 years, Germany quality.
Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.

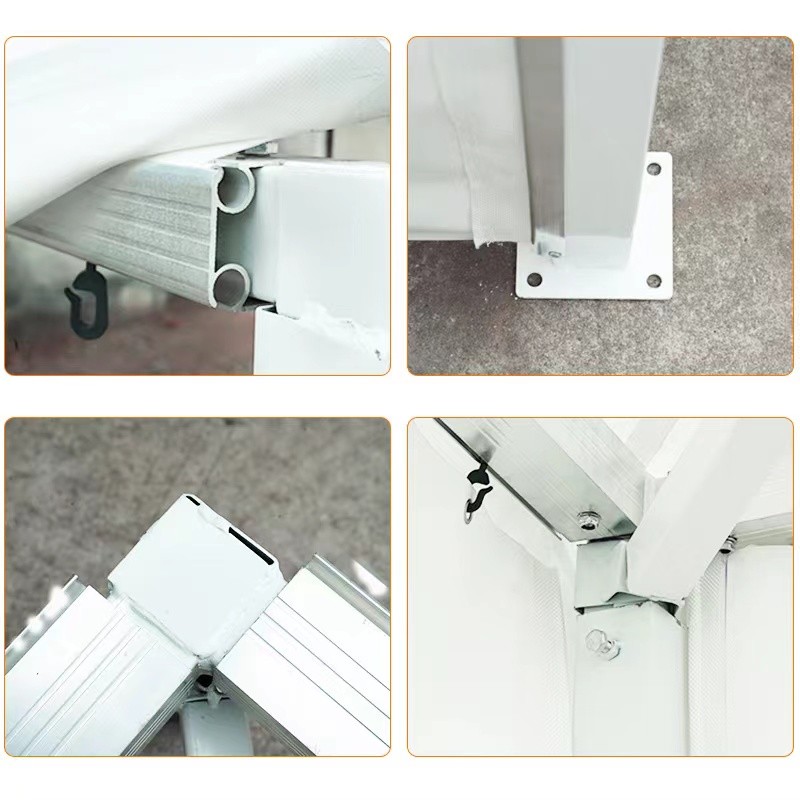

Connector: strong hot-dip galvanized steel
Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
Wind load: max. 100km/h (can be reinforced)
Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)

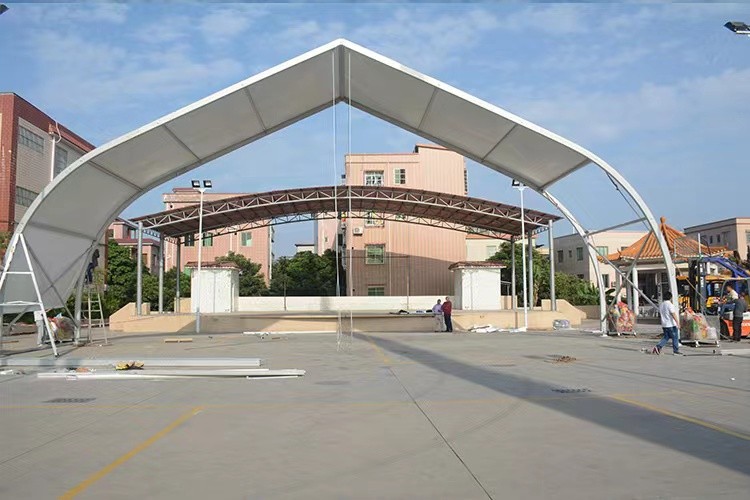

Feature: Easy to be assembled and dismantled, movable; No pole inside, 100% available interior space.
Application: Wedding tent, event tent, trade show tent, conference hall tent, workshop, warehouse, resort tent, exhibition tent etc.,.
| Span Width ( Meter) | Eave Height (Meter) | Ridge Height (Meter） | Bay Distance （Meter) | Longest Part (Meter) |
| 3 | 2.7 | 3.23 | 3 | 3 |
| 4 | 2.7 | 3.41 | 3 | 3 |
| 5 | 2.7 | 3.5 | 3 | 3.05 |
| 6 | 2.7 | 3.78 | 3 | 3.17 |
| 8 | 2.7 | 4.2 | 3 | 4.35 |
| 10 | 2.7 | 4.53 | 3 | 5.36 |
| 12 | 2.7 | 4.87 | 3 | 6.35 |
| 10 | 3.95 | 5.6 | 5 | 5.6 |
| 11 | 3.95 | 5.7 | 5 | 6 |
| 15 | 3.95 | 6.4 | 5 | 8.1 |
| 16 | 3.95 | 6.5 | 5 | 8.6 |
| 20 | 3.95 | 7.3 | 5 | 10.7 |
| 21 | 3.95 | 7.3 | 5 | 11.2 |
| 25 | 3.95 | 7.9 | 5 | 10.7 |
| 30 | 4 | 8.9 | 5 | 10.7 |
| 35 | 4 | 9.8 | 5 | 10.7 |
| 40 | 4 | 10.6 | 5 | 10.7 |
| 45 | 4 | 11.4 | 5 | 10.7 |
| 50 | 4 | 12.3 | 5 | 10.7 |
| 55 | 4 | 13.2 | 5 | 10.7 |
| 60 | 4 | 14.4 | 5 | 10.7 |
The length can be extended by 5m bay such as 15m, 20m, 30m, 40m... Customized size is available.
Contact: May
Phone: +8613672493759
E-mail: [email protected]
Add: Guangzhou,Guangdong,China
